Introduction

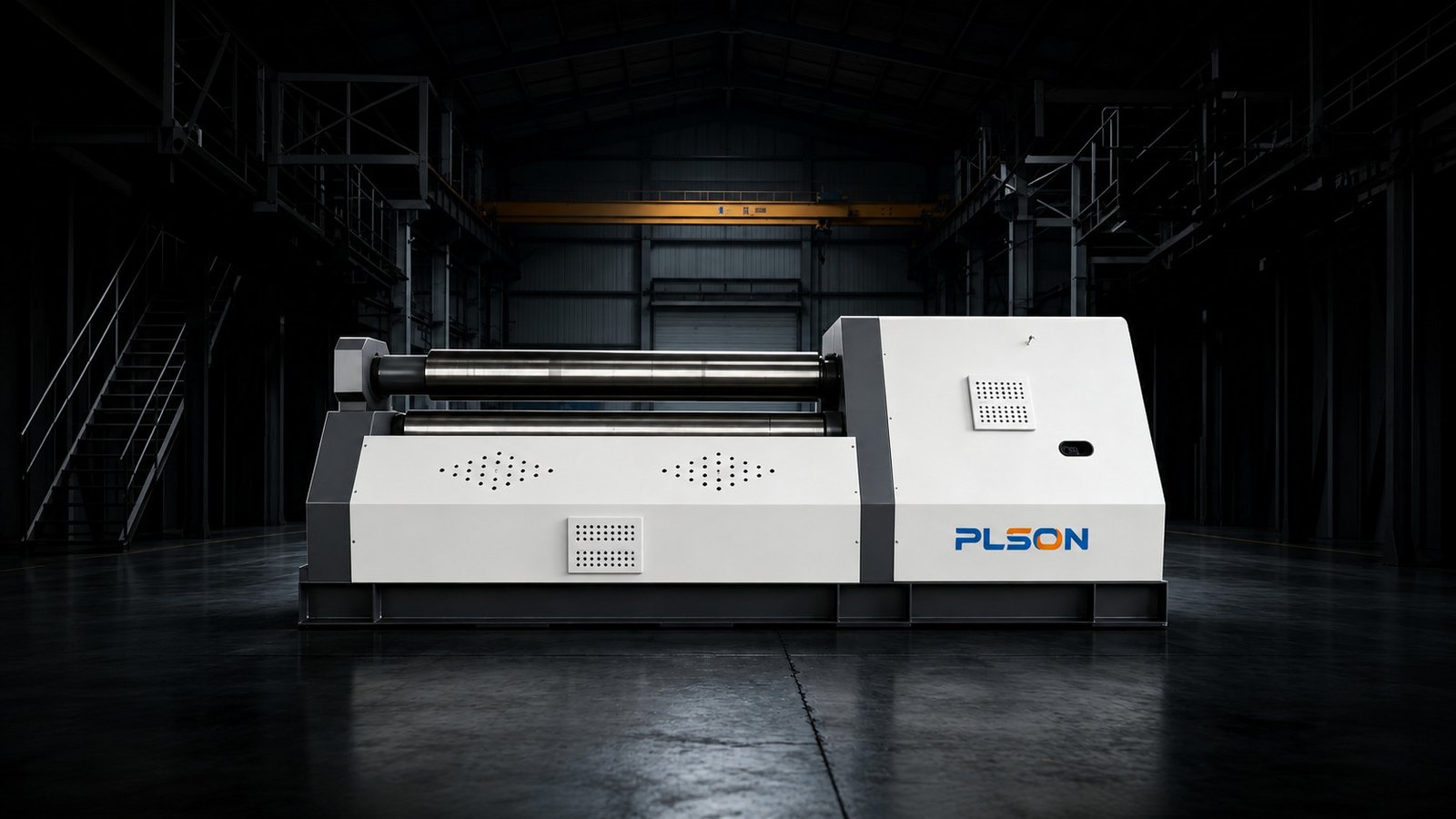

A plate rolling machine forms flat plate into accurate cylindrical and curved parts, and it is a key station on the production line. When the machine stops feeding material, the whole line loses output, downstream processes wait, and the operator has to stop and troubleshoot under time pressure.
Feeding faults are usually not random. In most cases the cause falls into one of four areas: a blocked feed inlet, a belt problem, a sensor problem, or a mechanical component problem. Working through these four areas in order solves most not-feeding problems quickly.
This guide explains each cause, how to identify it, and what to check before restarting production.
Safety first: Before inspecting the feed area, stop the machine, switch off the main power, and follow your plant’s lockout and shutdown procedure. Never reach into the feed inlet, the roll gap, or the belt area while the machine is running or while residual hydraulic pressure remains. Troubleshooting should be carried out only by trained and authorized personnel.
Why Feeding Problems Matter
Feeding is the first step of every rolling cycle. If the plate does not enter the rolls correctly:
- The production line stops and output falls
- Operators may attempt unsafe manual intervention to keep the line moving
- Repeated jam attempts can damage the plate edge, the rolls, or the feed mechanism
- Material handling equipment and downstream stations sit idle
- Scrap rate rises if a mis-fed plate is forced through
Because feeding is a mechanical, electrical, and sensing process at the same time, the cause can be mechanical or control-related. That is why a structured check sequence matters more than guessing.
1. Blocked Hopper or Feed Inlet
During operation, the machine performs feeding movements continuously. If the hopper or feed inlet becomes blocked, material cannot move forward, and the machine appears to be “not feeding”.
Typical symptoms
- The feed drive runs but no material advances
- Material sits at the feed inlet without entering the rolls
- Repeated feed attempts stop at the same point
- Feed motor current rises or the drive trips
What to check
- Stop the machine and isolate the power before opening any guard.
- Clean the inside of the hopper and the feed inlet. Remove metal chips, debris, and any foreign objects.
- Check for material that has jammed at an angle or is blocked by a bent or oversized plate edge.
- Confirm that the material dimensions are within the machine’s rated range.
- Check that the plate is square and the leading edge is straight and deburred.
Fix
Clearing the blockage usually restores feeding. If blocking recurs frequently, review plate size tolerance, edge condition, and the feed inlet clearance rather than only clearing the jam each time.
2. Belt Problems
The belt transmits drive to the feeding mechanism. If the belt breaks, stretches, or slips, material cannot be transported smoothly, and feeding stops or becomes intermittent.
Typical symptoms
- Feed drive runs but no material movement
- Slipping, squealing, or a burning smell from the belt area
- Intermittent feeding that stops under load
- Visible cracks, wear, or slack in the belt
What to check
- Inspect the belt for breakage, cracking, glazing, or excessive wear.
- Check belt tension against the manufacturer’s specification.
- Check pulley alignment and look for oil or debris on the belt surface.
- Verify that the driven pulley is not loose on its shaft.
Fix
Repair or replace the belt if it is damaged or stretched beyond its service limit. Correct the tension and alignment after fitting, and clean any oil or contamination from the pulley surfaces. A belt that fails repeatedly usually indicates a misaligned pulley or an overloaded feed.
3. Sensor and Detector Problems
Modern machines use a range of sensors and detectors to detect the plate and control the machine sequence. If a sensor fails or its signal is unstable, the control system may not receive the “material present” signal and will not start the feed movement.
Typical symptoms
- The machine stops at the start of the feed cycle
- The control displays a feed-related alarm or a missing-signal message
- Feeding works intermittently or only at certain positions
- The cycle runs with no material loaded, or refuses to run with material loaded
What to check
- Confirm the machine is stopped and the power is isolated before working on the sensor area.
- Check that the sensor’s indicating light or status output changes when material is present.
- Clean the sensor lens or sensing face; chips, dust, oil film, and coolant residue are common causes of false signals.
- Check the sensing distance and the mounting position against the manufacturer’s specification.
- Inspect the cable, connector, and terminal for damage, looseness, or corrosion.
- Confirm the sensor is compatible with the material being processed, since some sensor types respond differently to aluminum, stainless steel, and carbon steel.
Fix
Clean, reposition, or replace the faulty sensor and re-verify the signal with the control system. Do not bypass or permanently disable a safety-related sensor to keep the machine running.
4. Mechanical Component Problems
Failures in mechanical components can also stop the feeding action. Cam mechanisms, gears, shafts, couplings, and bearings are the parts most often involved.
Typical symptoms
- Unusual noise, knocking, or vibration from the feed mechanism
- Feed motion that is jerky, uneven, or stuck
- Visible wear, broken teeth, or play in the mechanism
- Feed drive runs but the mechanism does not move
What to check
- Inspect cams, gears, and couplings for wear, broken teeth, or backlash.
- Check keys, pins, and locking devices for shearing or loosening.
- Check bearings for play, roughness, or overheating.
- Verify that lubrication points have been serviced on schedule.
- Confirm that no foreign object or deformed plate is jamming the mechanism.
Fix
Repair or replace the damaged component. Where a gear or cam has failed, check the mating part as well, because wear usually affects both sides. Restore lubrication before restarting, and confirm the feed mechanism moves freely by hand where the manufacturer permits it.
Recommended Troubleshooting Sequence
Working in a fixed order avoids unnecessary disassembly and reduces downtime.
Preventing Feeding Problems
Most feeding faults develop gradually and give warning signs before they stop the line.
- Clean the feed area, rolls, and sensors at the end of each shift.
- Remove metal chips and debris before they reach the feed inlet.
- Follow the manufacturer’s lubrication schedule for feed mechanism components.
- Check belt tension and condition at planned intervals.
- Inspect sensor mounting, cable routing, and connectors during routine maintenance.
- Record every feeding stoppage with cause and repair so repeat faults become visible.
- Train operators to report abnormal noise, vibration, or intermittent feeding immediately.
- Keep critical spare parts such as belts, sensors, and wear components in stock.
Conclusion
A plate rolling machine that will not feed usually has a cause in one of four areas: a blocked hopper or feed inlet, a damaged or loose belt, a faulty sensor, or a worn mechanical component.
Troubleshooting in a fixed sequence — safety isolation first, then inlet, material, sensors, belt, and mechanical parts — resolves most faults faster than opening the machine at random. Regular cleaning, lubrication, and inspection prevent most of these problems from stopping the line in the first place.
If a feeding fault continues after these checks, contact the PLSON engineering team with your machine model, control system, alarm message, and a short video of the fault. We will help you identify the cause and the correct replacement parts.
