Buying a CNC press brake is one of the biggest investment decisions for any sheet metal fabrication shop. Pick the wrong tonnage, and you can’t bend your thickest parts. Choose the wrong length, and you can’t fit your largest panels. Over-spec the machine, and you’ve spent money on capacity you’ll never use.

This guide walks you through the four critical decisions — tonnage, bending length, control system, and tooling — so you can select the right press brake with confidence.

1. Start Here: What Will You Actually Bend?

Before looking at any machine specs, answer these three questions:

Question Why It Matters
What is the thickest material you bend regularly? Determines tonnage
What is the widest part you need to bend? Determines bending length
What materials do you work with? Steel, stainless, and aluminum require different tonnage

Material Matters: Tonnage Isn’t Universal

Bending 3mm mild steel requires far less force than bending 3mm stainless steel. Here’s a quick reference for common materials:

Material Relative Force Required (vs Mild Steel)
Mild Steel 1.0× (baseline)
Stainless Steel (304) ~1.5×
Aluminum (5052) ~0.5×
Hardox / High-Strength Steel ~2.0×

Rule of thumb: If you work with stainless steel regularly, spec your press brake at least 50% above the tonnage you’d need for mild steel of the same thickness.

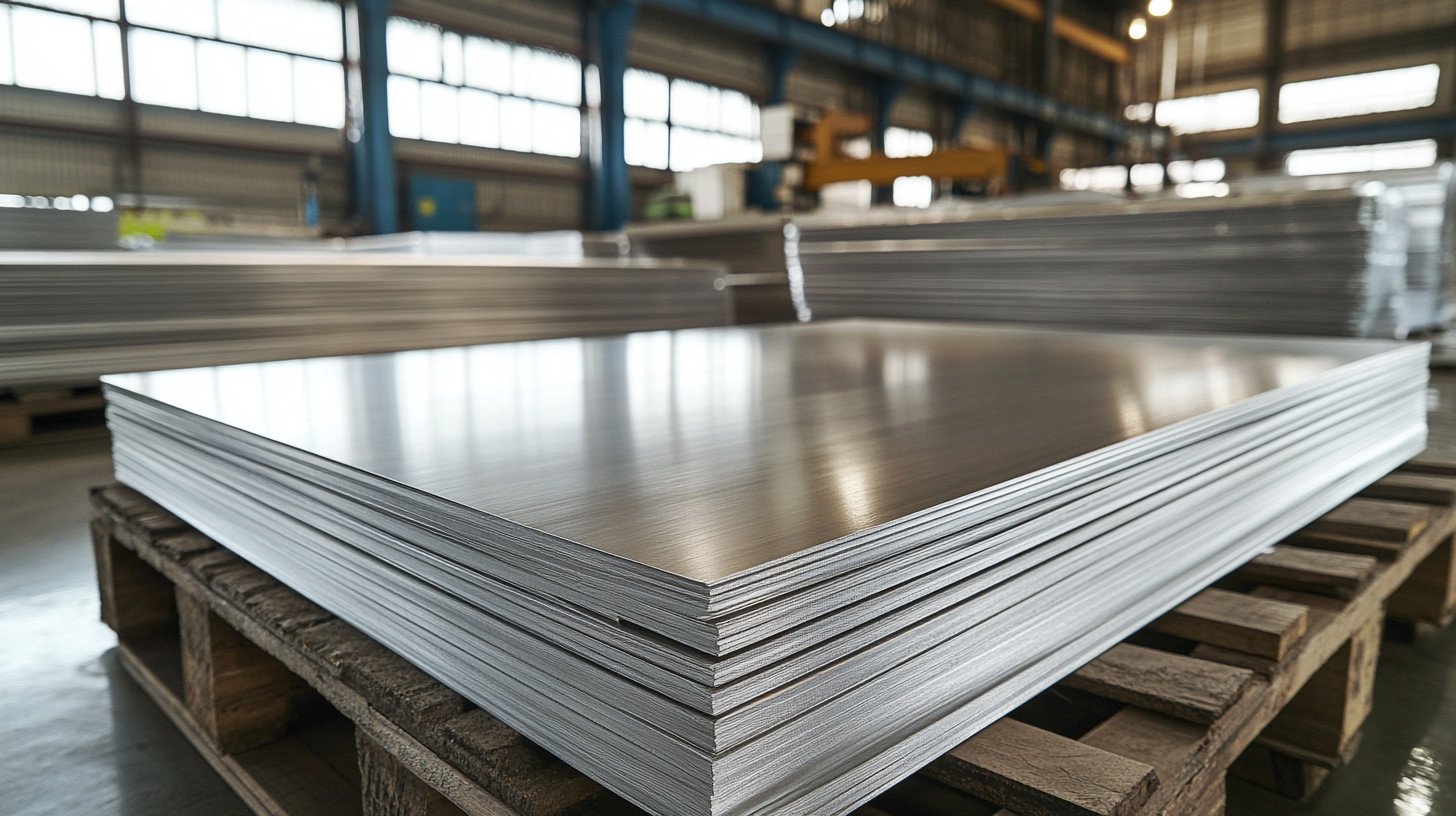

stainless steel

2. How to Calculate Press Brake Tonnage

Press brake tonnage is determined by four factors:

  • Material thickness (T)
  • V-die opening (V) — typically 8× material thickness
  • Bending length (L)
  • Material tensile strength (σ)

The Standard Formula

F=1.42×σ×T2×L1000×V

Where:

  • F = Bending force (kN)
  • σ = Tensile strength (MPa) — ~450 for mild steel, ~650 for stainless
  • T = Material thickness (mm)
  • V = V-die opening (mm)
  • L = Bending length (mm)

Practical Example

You want to bend a 2,500mm long × 4mm thick mild steel sheet using a V=32mm die:

F=1.42×450×42×25001000×32=1.42×450×16×250032000≈799kN (≈80 tons)

For the same part in stainless steel (σ≈650): ~115 tons.

Quick Reference: Tonnage by Material & Thickness (per meter of bend)

Thickness Mild Steel Stainless Steel Aluminum
1.5 mm ~15 tons/m ~22 tons/m ~8 tons/m
3 mm ~34 tons/m ~50 tons/m ~17 tons/m
4 mm ~48 tons/m ~72 tons/m ~24 tons/m
6 mm ~78 tons/m ~117 tons/m ~39 tons/m
8 mm ~105 tons/m ~158 tons/m ~53 tons/m
10 mm ~135 tons/m ~203 tons/m ~68 tons/m
12 mm ~170 tons/m ~255 tons/m ~85 tons/m

How to use this table: Multiply the tons/meter value by your maximum bending length (in meters). For 3mm stainless steel with a 3-meter bending length: 50 × 3 = 150 tons minimum.

A Word of Caution

Never run a press brake at 100% of its rated tonnage continuously. Leave at least a 20% safety margin. If your calculation says 100 tons, buy a 120-130 ton machine.

3. Choosing the Right Bending Length

Bending length determines the maximum width of sheet you can bend in a single operation.

Bending Length Typical Application
1.25m – 2m Small job shops, electrical enclosures, brackets
2.5m – 3.2m General fabrication, light structural, HVAC ductwork
4m – 6m Heavy structural, shipbuilding, long panels
6m+ Specialized applications (wind towers, bridge components)

Common Configurations

Most standard press brakes ship in these length/tonnage combinations:

Tonnage Common Lengths
40T – 63T 1.25m, 1.6m, 2m
80T – 100T 2.5m, 3.2m
125T – 160T 3.2m, 4m
200T – 300T 4m, 5m, 6m
400T+ 6m, 8m, 10m+

Tip: If 90% of your work fits a 2.5m bed but you occasionally need 3.2m, buy the longer machine. You can always bend shorter parts on a longer bed, but not the reverse.

4. NC vs CNC Control: Which System Do You Need?

This is where budgets often break. The control system directly affects productivity, accuracy, and ease of use.

Feature NC (Numerical Control) CNC (DA-Series / E-Series)
Axis Control Y-axis only (stroke depth) Y1, Y2, X, R, Z (multi-axis)
Angle Correction Manual or mechanical Automatic crowning compensation
Back Gauge Manual or motorized, single-axis CNC servo-driven, multi-axis
Programming Enter values per bend Graphical interface, bend sequence auto-calculation
Repeatability ±0.05 – 0.1mm ±0.01 – 0.02mm
Operator Skill Required High Low to moderate
Best For Low-mix, simple bends; 1-3 bends per part High-mix, complex parts; multi-bend sequences
Relative Cost Baseline +40% to +80%

NC Press Brake: When It Makes Sense

  • Simple 90° bends on consistent material
  • Low production volume
  • Experienced operators available
  • Budget under $15,000–$25,000

CNC Press Brake (DA-41T / DA-53T / DA-66T): When It Makes Sense

  • Multiple bend angles per part (3+ bends)
  • Frequent job changeovers
  • High precision requirements (±0.5° or better)
  • You want to reduce reliance on skilled operators
  • Budget $25,000–$60,000+

E-Control (ESA / Delem DA-66T / DA-69T): Full 3D

  • Offline programming — simulate bends before touching metal
  • Automatic bend sequence optimization
  • Collision detection
  • Robotics and automation integration ready

5. Back Gauge: The Hidden Productivity Driver

The back gauge positions your sheet for each bend. A better back gauge = faster setup and fewer mistakes.

Back Gauge Type Axes Best For
Manual None Hobby / very low volume
Motorized (single-axis) X only Simple parts, low mix
CNC 2-axis X, R General fabrication
CNC 4-axis X, R, Z1, Z2 Complex parts, high mix
CNC 5-axis+ X, R, Z1, Z2 + additional Full automation, lights-out

R-axis (vertical) adjusts for different die heights — critical if you use multiple tooling setups. Z1/Z2 axes (left/right independent) allow tapered bending and off-center positioning.

If you run more than 10 different part numbers, invest in at least a CNC 2-axis back gauge (X+R). The time saved on setups will pay for the upgrade within months.

6. Tooling: Quick-Clamp vs Manual

Press brake tooling directly affects setup time and bend quality.

Feature Manual Clamping Quick-Clamp (Hydraulic/Auto)
Tool Change Time 15–45 minutes 2–5 minutes
Operator Effort High Low
Best For Low-mix production High-mix, frequent changeovers
Added Cost Baseline +$2,000–$5,000

Tooling Material

Material Hardness Wear Resistance Typical Use
T8 / T10 Carbon Steel 55–60 HRC Moderate Mild steel, low volume
42CrMo 48–52 HRC Good General purpose
Cr12MoV 58–62 HRC Excellent Stainless, high volume

7. Additional Features Worth Considering

Feature What It Does Worth It If…
CNC Crowning Automatically compensates for bed deflection You bend long parts (2m+) and need consistent angles
Laser Safety Stops the ram if anything crosses the light curtain You care about operator safety (you should)
Servo Motor (Electric) Replaces hydraulic system; 30-50% less energy High electricity costs or noise restrictions
Offline Software Program bends on a PC, transfer to machine High mix, complex parts
Sheet Followers Supports large sheets during bending Thin gauge or large panels

8. New vs Used: Total Cost of Ownership

A used press brake can save 30-50% upfront, but consider these hidden costs:

Factor New Press Brake Used Press Brake
Upfront Cost $20,000–$80,000+ $8,000–$30,000
Warranty 12–24 months None
Installation & Training Included Extra
Spare Parts Availability Guaranteed Unknown
Accuracy Out of the Box ±0.01mm Depends on wear
Energy Efficiency Modern servo/hybrid Older hydraulic systems

For a machine that will run 8+ hours/day, buy new. For a backup machine or low-volume use, a well-inspected used machine can work.

9. Why PLSON Press Brakes?

PLSON has manufactured sheet metal fabrication equipment for 30 years from our factory in Jiangsu, China. Our CNC press brakes are built for shops that need reliability, precision, and straightforward value.

What you get with a PLSON press brake:

What Why It Matters
European-standard hydraulic system (Bosch Rexroth / Hoerbiger valves) Consistent bending force, less maintenance
Delem or ESA CNC controllers Industry-standard programming, easy operator training
Steel-welded frame, stress-relieved Frame stability = bend accuracy, year after year
CNC crowning standard on DA-series Full-length angle consistency without manual shimming
CE-certified, export-ready Ships compliant to EU, Southeast Asia, Middle East, Africa
Remote installation support + on-site training available Your operators get up to speed fast

10. Decision Checklist

Before you contact a supplier, have these answers ready:

  • Maximum material thickness: ___ mm
  • Material types: Mild steel / Stainless / Aluminum / Other
  • Maximum part width: ___ mm
  • Typical bend angles: 90° only / Multiple angles
  • Average bends per part: ___
  • Number of different parts per week: ___
  • Available floor space: ___ m × ___ m
  • Power supply: ___ V / ___ phase / ___ Hz
  • Budget range: $___ – $___

Ready to Find the Right Press Brake?

Tell us what you need to bend, and our engineers will recommend the right PLSON press brake for your workshop — with a detailed quotation including shipping to your port.
