High-Performance Hydraulic 3-Roll Symmetrical Plate Rolling Machine

The Perfect Balance of Powerful Performance and Cost-Efficiency

Our Hydraulic 3-Roll Symmetrical Plate Rolling Machine is the industry-standard choice for manufacturers seeking reliable, high-torque metal bending. By combining the classic symmetrical design with advanced hydraulic power, this machine offers effortless vertical movement of the top roller. It is engineered to handle thicker materials with higher precision than mechanical models, making it the ideal “workhorse” for producing high-quality cylinders and arc-shaped components in any modern fabrication shop.

Open catalogue

W11Y hydraulic 3 roller stmmetrical plate rolling machine

Includes the following features and settings

Powerful Hydraulic Vertical Stroke

Stable Symmetrical Arrangement

Precise Digital Position Control

Heavy-Duty "Vibration-Relieved" Frame

Standard Equipment

REQUEST INFORMATION
  • Main Rollers 42CrMo Alloy Forged Steel
  • Horizontal Drive Hydraulic / Motorized Screw
  • NC/PLC System Delta / Siemens / ESA
  • Hydraulic System Rexroth (Germany) / Yuken (Japan)
  • Sealing System SKF / Parker / NOK
  • Main Motor Siemens / ABB (IE3 Grade)
  • Bearings FAG / SKF / Heavy-duty Roller
  • Electrical Components Schneider (France) / LS

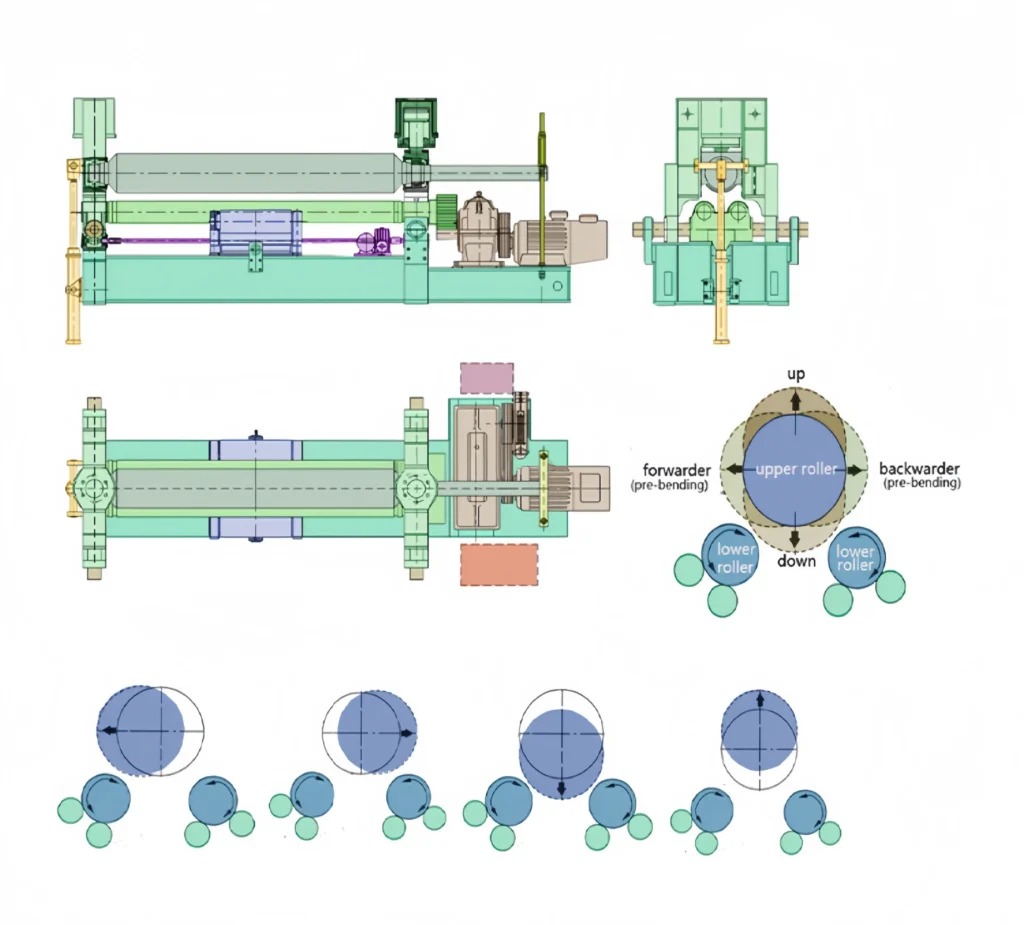

How It Works

Upper Roll Universal Precision Bending

  • Clamping: The Upper Roll moves vertically to grip the plate securely against two fixed bottom rollers.
  • Horizontal Pre-Bending: The Upper Roll shifts horizontally to the edge of the plate, performing precision pre-bending on both ends without flipping the plate.

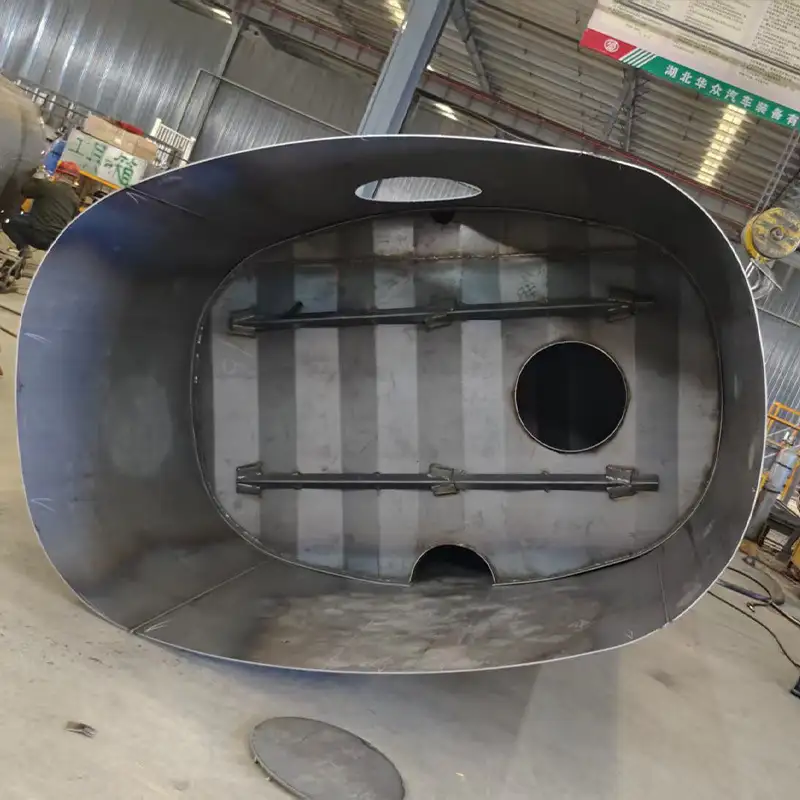

  • Rolling & Forming: The bottom rolls provide the drive while the Upper Roll’s position determines the radius, easily forming cylinders, cones, or U-shapes.
  • Hydraulic Discharge: Once formed, the hydraulic drop-end opens for fast and safe removal of the finished part.

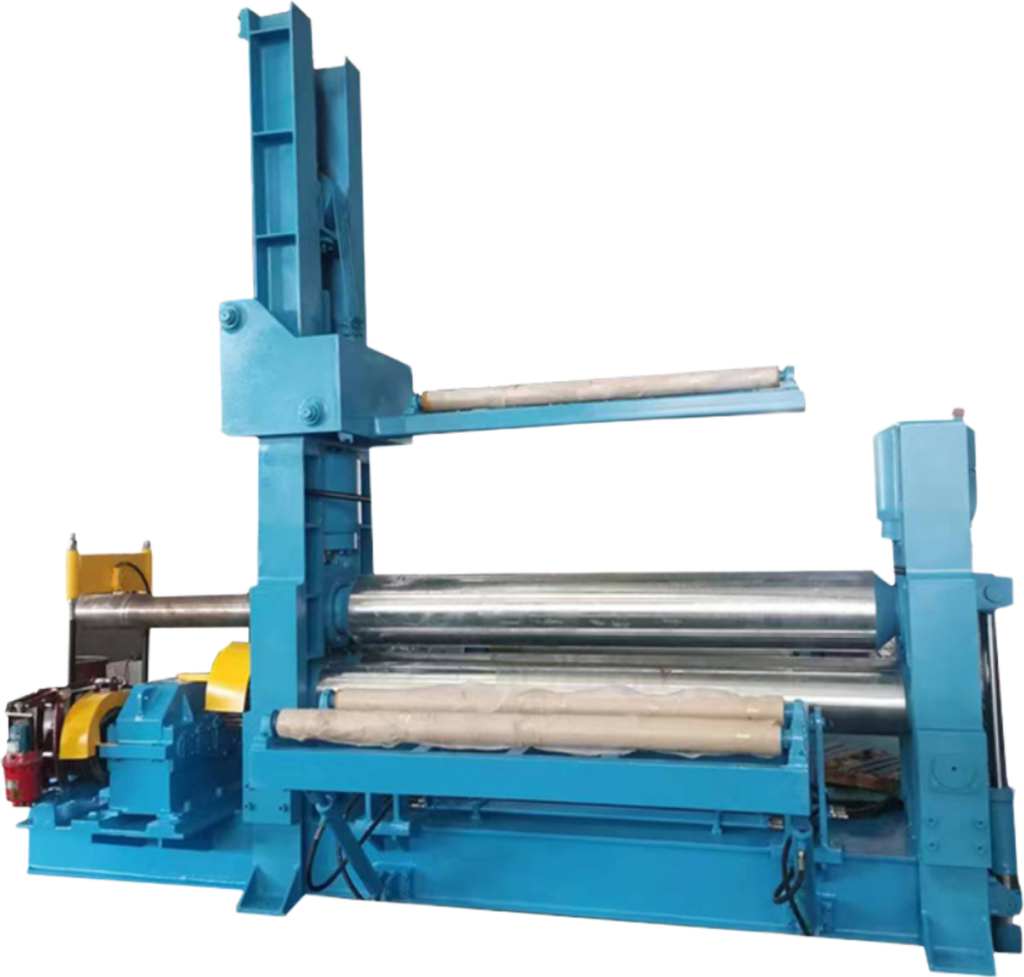

Optional Hydraulic Lateral Side Supports

Prevent Plate Sagging: Supports wide or thin sheets from both sides to eliminate gravity-induced drooping and deformation.

Superior Alignment: Ensures the plate remains perfectly parallel to the rollers for high-accuracy results on every roll.

Enhanced Safety: Minimizes the risk of large, heavy plates shifting or falling during high-speed rolling operations.

CNC Integration: Fully synchronizes with the machine’s control system for seamless, automated, and hands-free operation.
