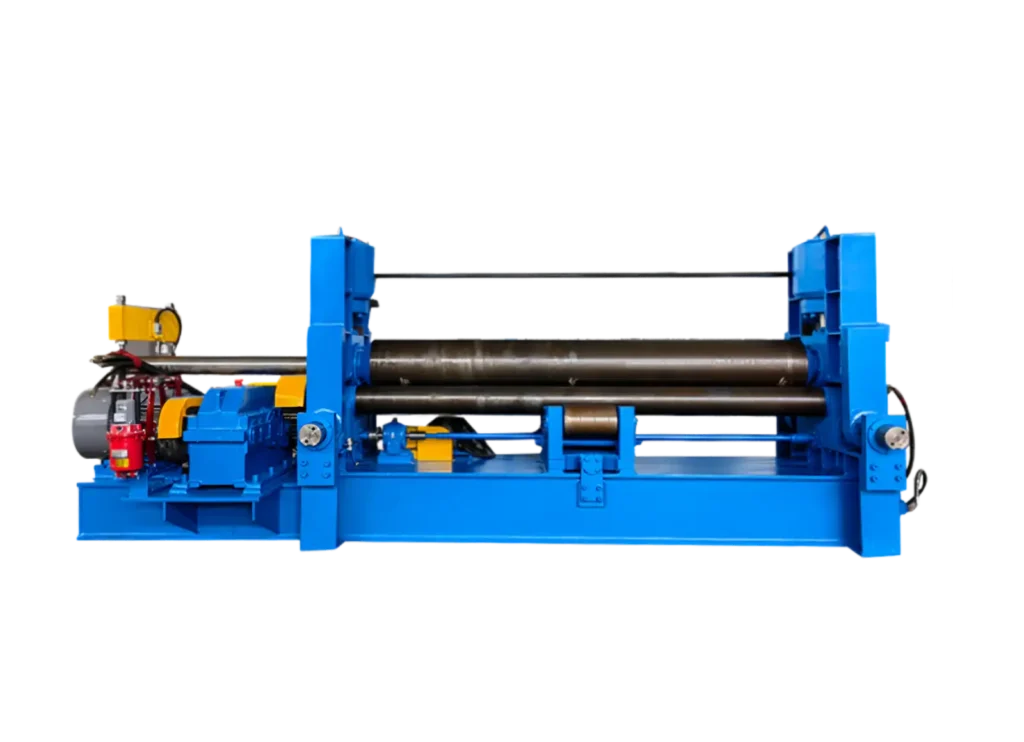

W11s-size upper roller universal plate rolling machine

High-Precision Upper Roll Universal Plate Rolling Machine

The Versatile Powerhouse for Complex Metal Bending & Pre-Bending

Our Upper Roll Universal Plate Rolling Machine is the ultimate solution for manufacturers seeking maximum flexibility and precision. Unlike standard 3-roll machines, the upper roller of this machine can move both vertically and horizontally. This unique movement allows for high-precision pre-bending of both plate edges in a single setup, effectively eliminating “flat ends.” It is the ideal choice for rolling high-quality cylinders, cones, and complex arc shapes for heavy-duty industrial applications.

W11s-size upper roller universal plate rolling machine

Includes the following features and settings

Standard Equipment

Clamping: The Upper Roll moves vertically to grip the plate securely against two fixed bottom rollers.
Horizontal Pre-Bending: The Upper Roll shifts horizontally to the edge of the plate, performing precision pre-bending on both ends without flipping the plate.
Rolling & Forming: The bottom rolls provide the drive while the Upper Roll’s position determines the radius, easily forming cylinders, cones, or U-shapes.
Hydraulic Discharge: Once formed, the hydraulic drop-end opens for fast and safe removal of the finished part.

Prevent Plate Sagging: Supports wide or thin sheets from both sides to eliminate gravity-induced drooping and deformation.

Superior Alignment: Ensures the plate remains perfectly parallel to the rollers for high-accuracy results on every roll.

Enhanced Safety: Minimizes the risk of large, heavy plates shifting or falling during high-speed rolling operations.

CNC Integration: Fully synchronizes with the machine’s control system for seamless, automated, and hands-free operation.
