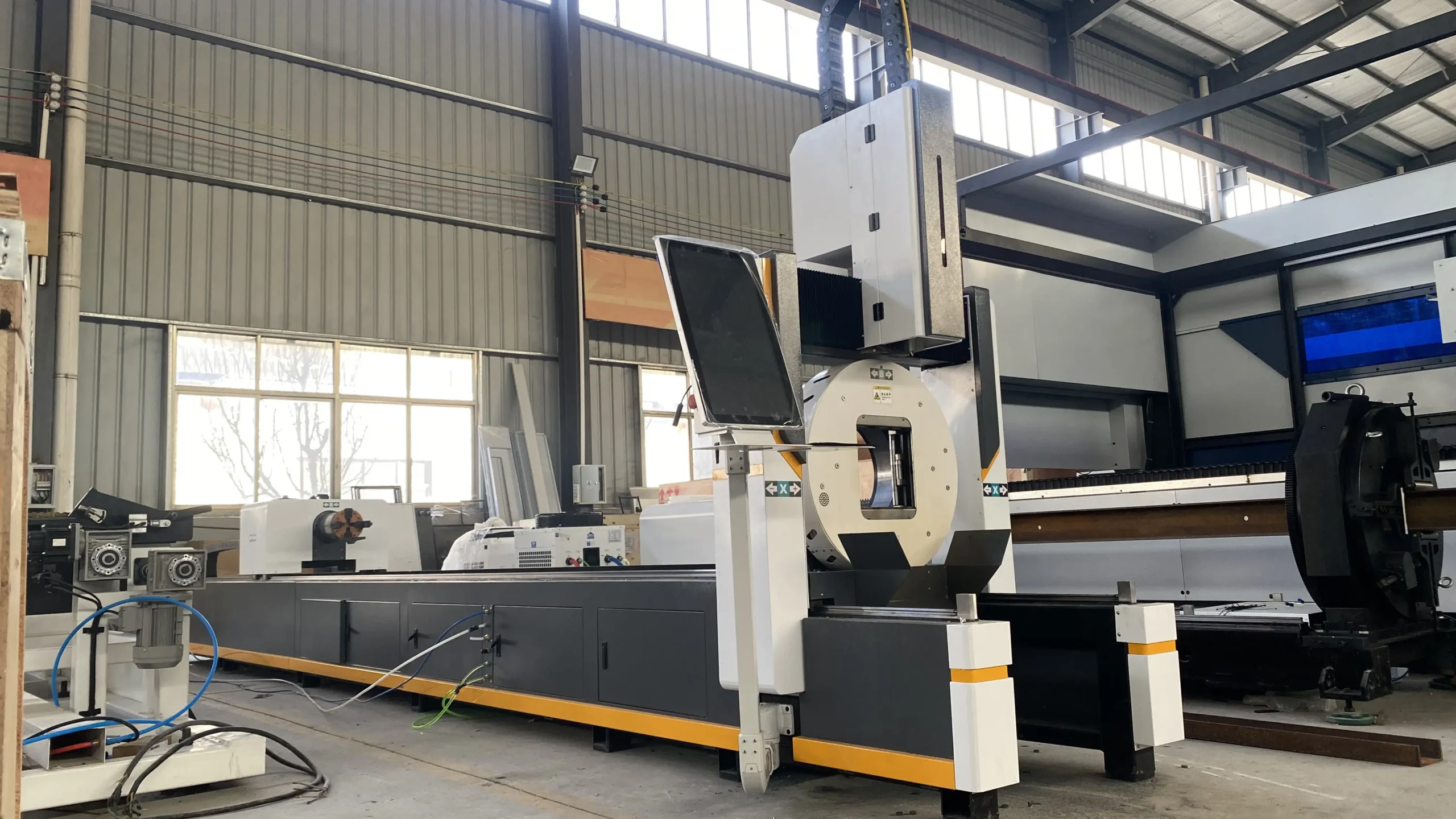

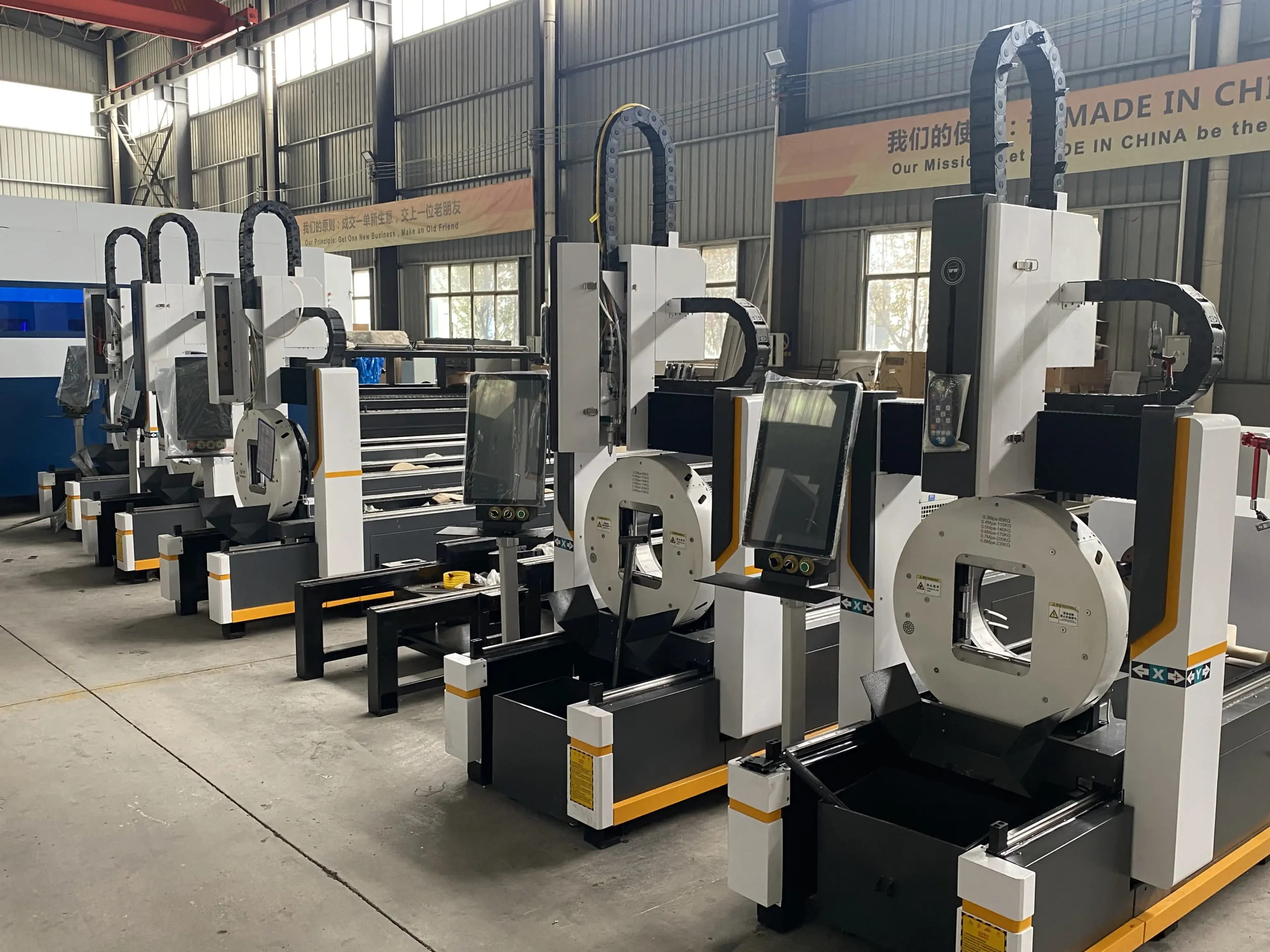

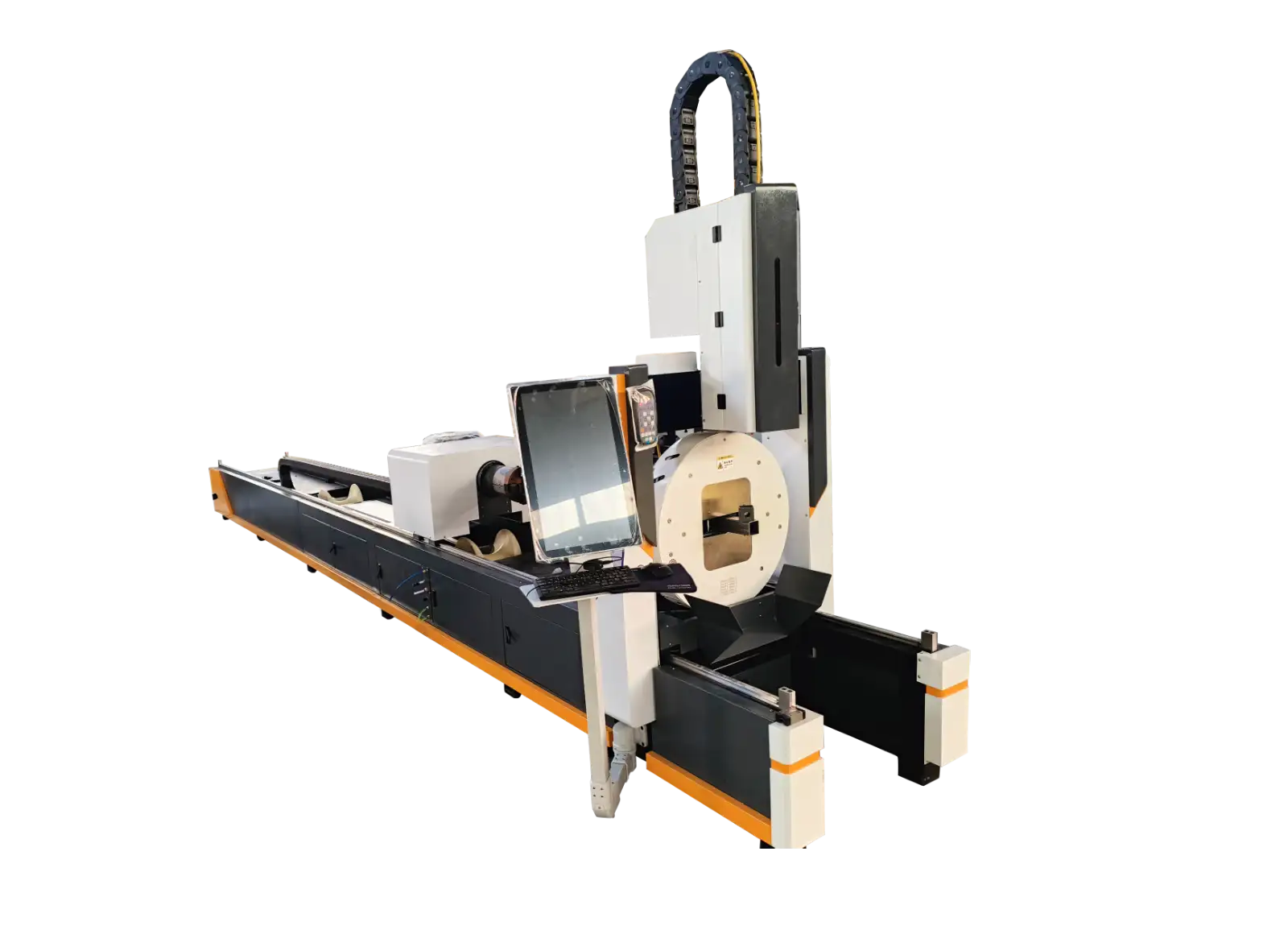

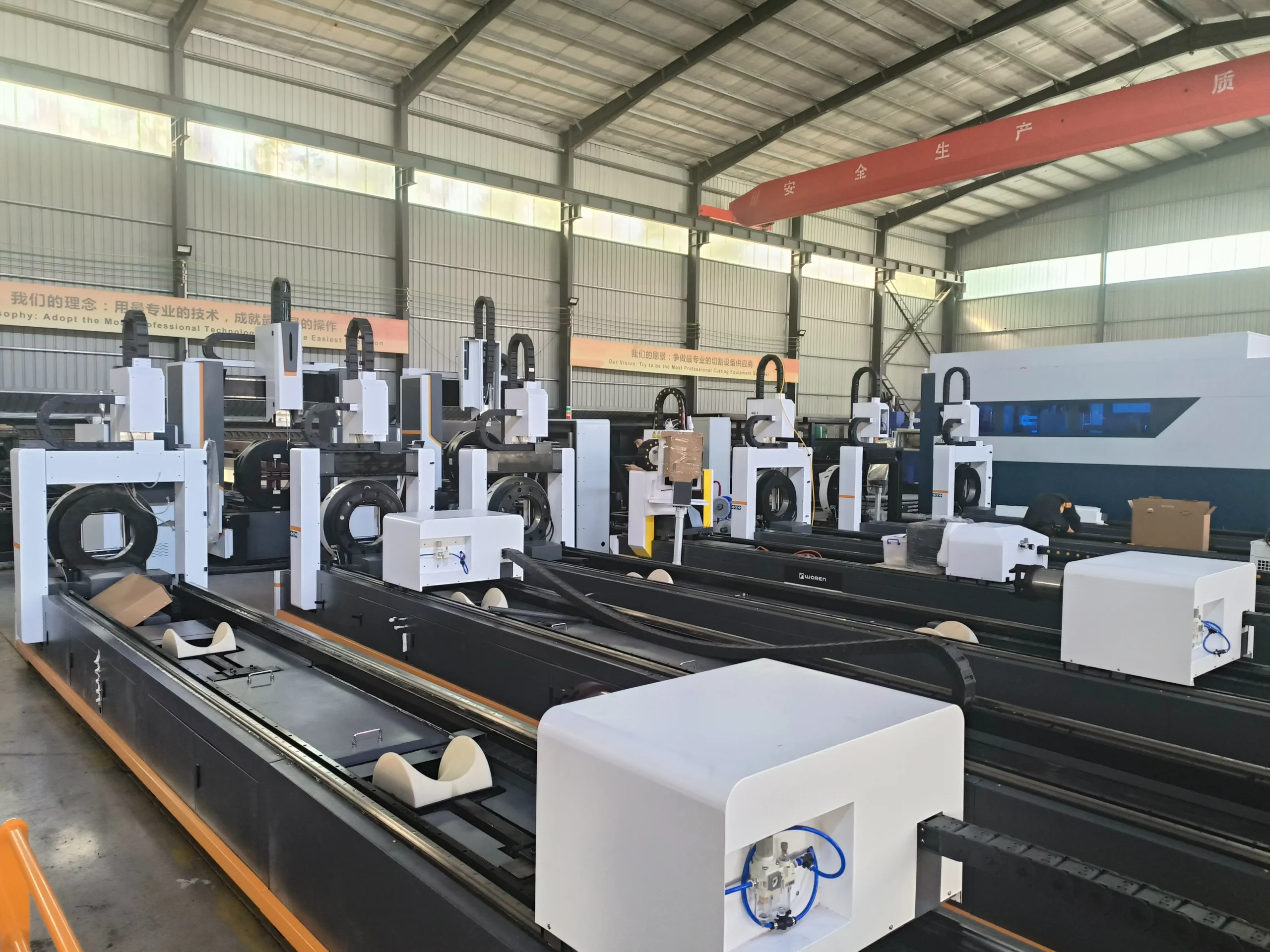

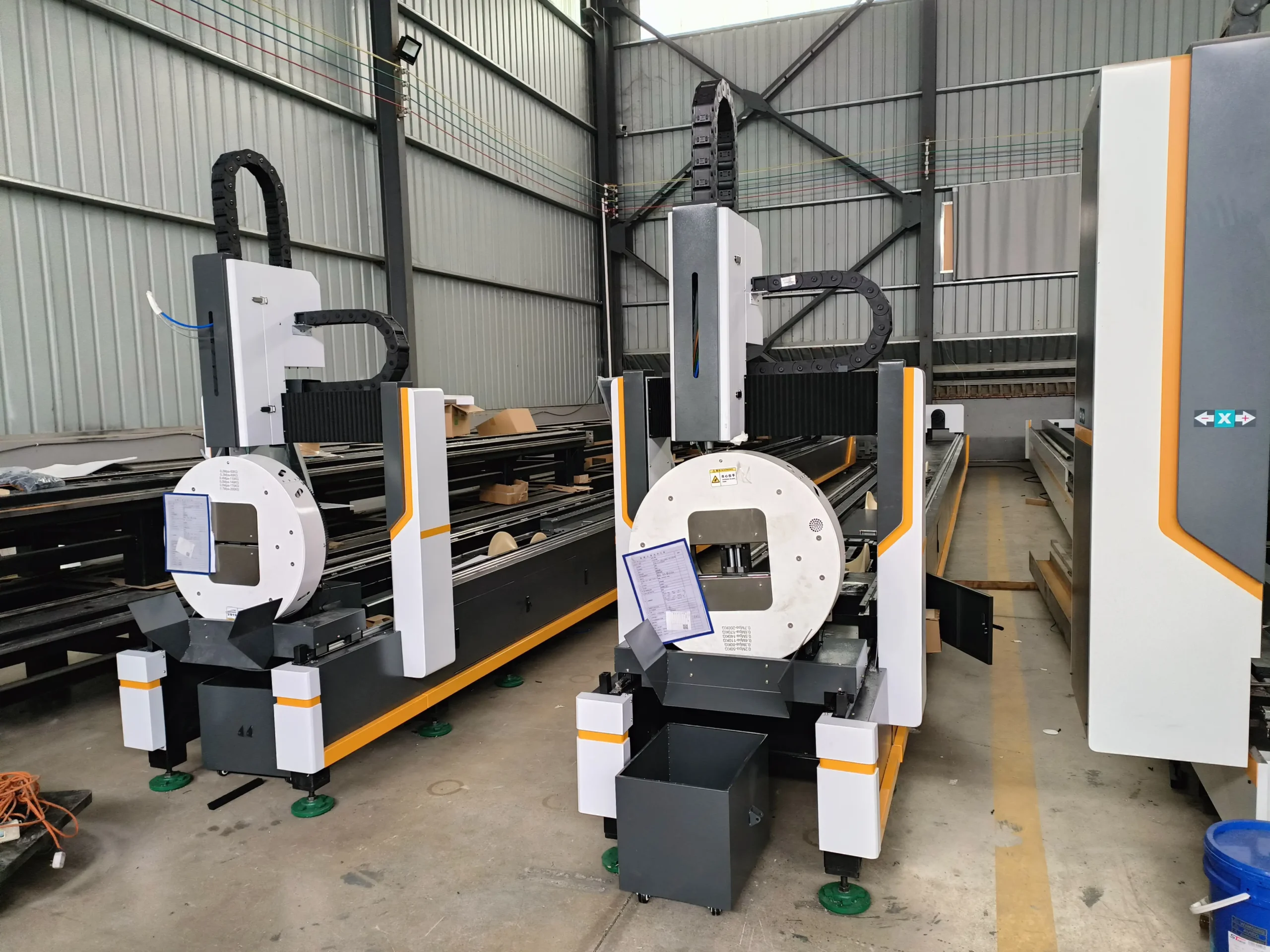

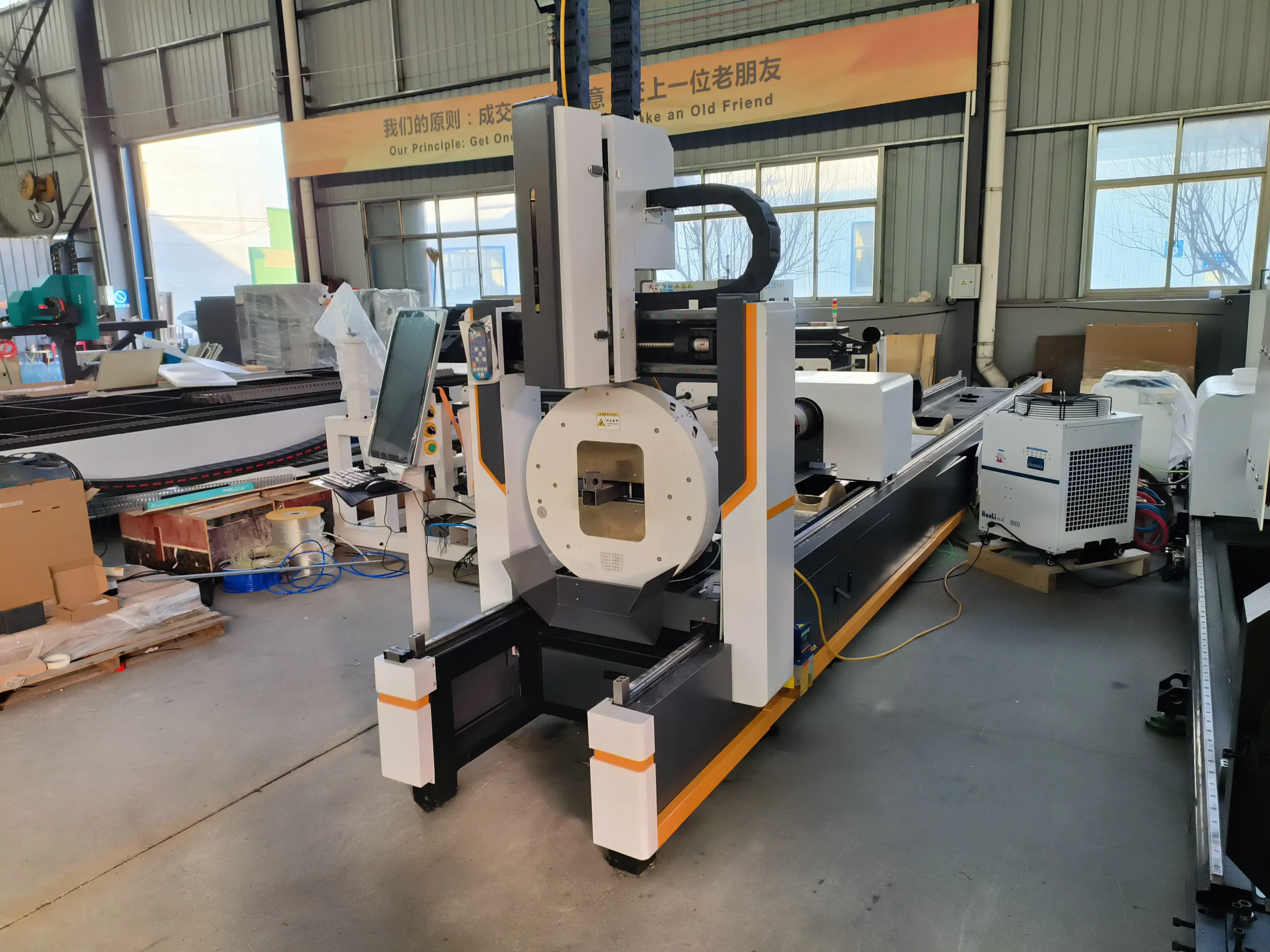

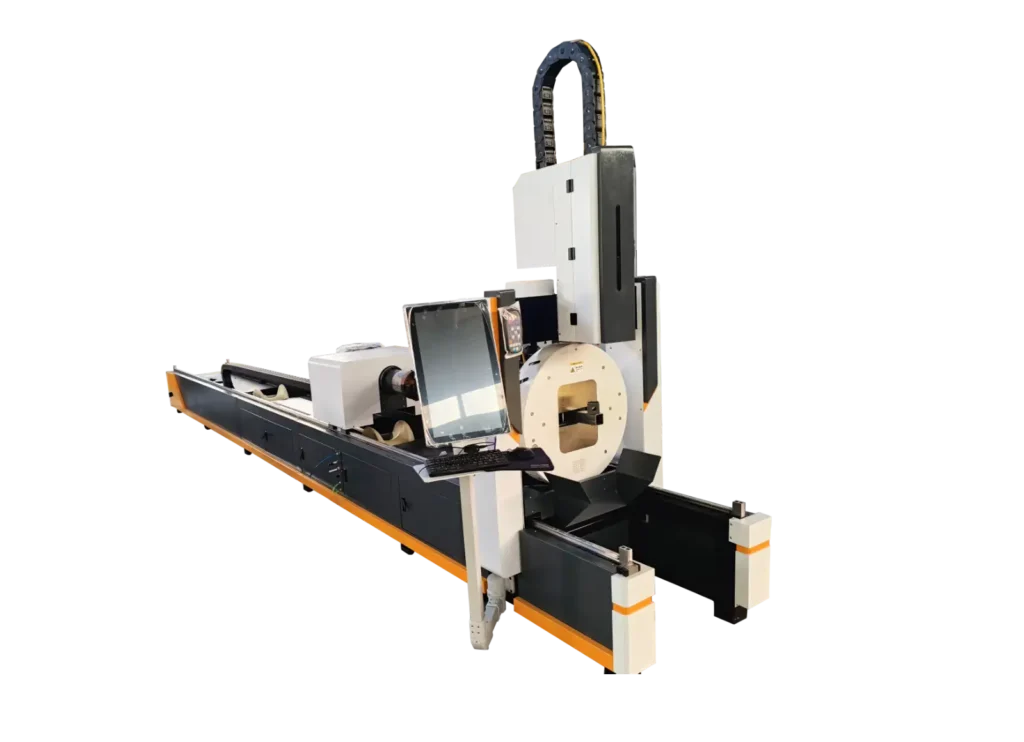

Fiber Laser Tube Cutting Machine

High-Precision Fiber Laser Tube Cutting Machine

The All-in-One Solution for Complex Tube & Profile Fabrication

Revolutionize your production line with our Professional Fiber Laser Tube Cutting Machine. Engineered for high-speed processing of round, square, rectangular, and asymmetrical profiles, this machine replaces traditional sawing, drilling, and deburring with a single, automated process. Whether you are creating complex intersection lines for structural steel or intricate designs for high-end furniture, our laser system delivers micron-level accuracy and burr-free edges in seconds.

Open catalogue

Fiber Laser Tube Cutting Machine

Includes the following features and settings

Versatile Multi-Profile Processing

Intelligent Dual Pneumatic Chuck System

Complex Geometry & Intersection Cutting

Minimal Tailing & Material Efficiency

Standard Equipment

REQUEST INFORMATION
  • Laser Source Raycus (China) / IPG (USA)
  • Chuck System Full-Stroke Pneumatic Chucks
  • Control System TubePro (Friendess)
  • Nesting Software TubesT (3D Nesting)
  • Servo System Yaskawa (Japan) / Fuji
  • Laser Head Raytools (Switzerland) / Precitec
  • Transmission YYC Gear Rack / HIWIN Rail
  • Reduction Gearbox Shimpo (Japan) / Motoreducir

CNC Control System

8 Key Advantages of the SIEMENS CNC System

  • Global Network & Service Stability
  • Micron-Level Control & High Precision
  • Intuitive Human-Machine Interface
  • Exceptional Durability in Harsh Environments
  • High-Speed Data Processing
  • Industry 4.0 & Digital Integration
  • Integrated Safety Logic
  • Advanced Energy Efficiency

How It Works

The 4-Roll Plate Rolling Process

  • Clamping & Squaring: The plate is gripped between the Top and Bottom rollers. A Side Roller acts as a back-gauge to instantly square the plate for perfect parallelism.
  • Pre-Bending: While clamped, a Side Roller moves upward to pre-bend the leading edge. This ensures zero flat ends and perfect circularity from the very start.
  • One-Pass Rolling: The machine rotates the rollers to form the cylinder in one continuous motion. The plate remains clamped, allowing for the entire process—including final edge pre-bending—to be completed in a single cycle.
  • Easy Discharge: Once formed, the Hydraulic Drop-End opens automatically, allowing the finished cylinder to be removed quickly and safely.

The 4-Roll Plate Rolling Process

Vertical Top Support: Designed for large-diameter cylinders, it holds the plate from above to prevent collapsing under its own weight, ensuring perfect circularity.

Lateral Side Supports: Stabilizes extra-wide or thin plates from both sides during the rolling process, preventing sagging and maintaining perfect alignment.

Motorized Feeding Table: Automates smooth material entry and automatic squaring, significantly boosting productivity while reducing labor risks.
