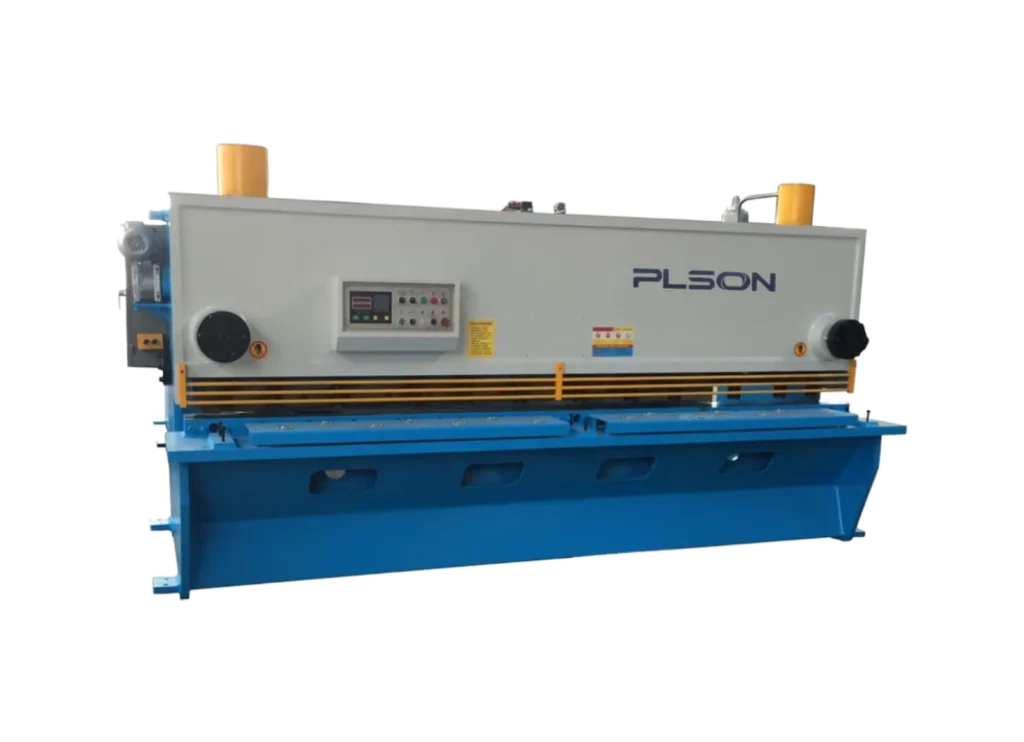

QC11k series hydraulic guillotine shear
High-Precision Hydraulic Guillotine Shearing Machine
The Ultimate Solution for Clean, Distortion-Free Metal Cutting
Our Hydraulic Guillotine Shearing Machine is engineered for manufacturers who demand the highest levels of precision and structural integrity. Unlike traditional swing beam models, the guillotine design utilizes a vertical cutting stroke and an adjustable rake angle. This advanced technology significantly reduces plate twisting and bowing, ensuring perfectly straight, burr-free edges even when processing thick plates or narrow strips. It is the definitive choice for high-volume, precision-focused metal fabrication.
QC11k series hydraulic guillotine shear
Includes the following features and settings
Adjustable Rake Angle (Zero Distortion)
Vertical Shearing Precision
Motorized Blade Gap Adjustment
Heavy-Duty "Vibration-Relieved" Frame
Standard Equipment
- Blade Material 9CrSi / 6CrW2Si (High Carbon/Chrome)
- Hydraulic System Rexroth (Germany) / Yuken (Japan)
- CNC/Controller Delem / Cybelec / Estun (E21S/DAC310)
- Backgauge System Ball Screw & Linear Guide Rail
- Electrical Components Schneider (France) / Siemens
- Sealing System SKF (Sweden) / NOK (Japan)
- Main Motor Siemens / ABB (High Efficiency)
- Holding Cylinders Polyurethane Padded Cylinders
Control System

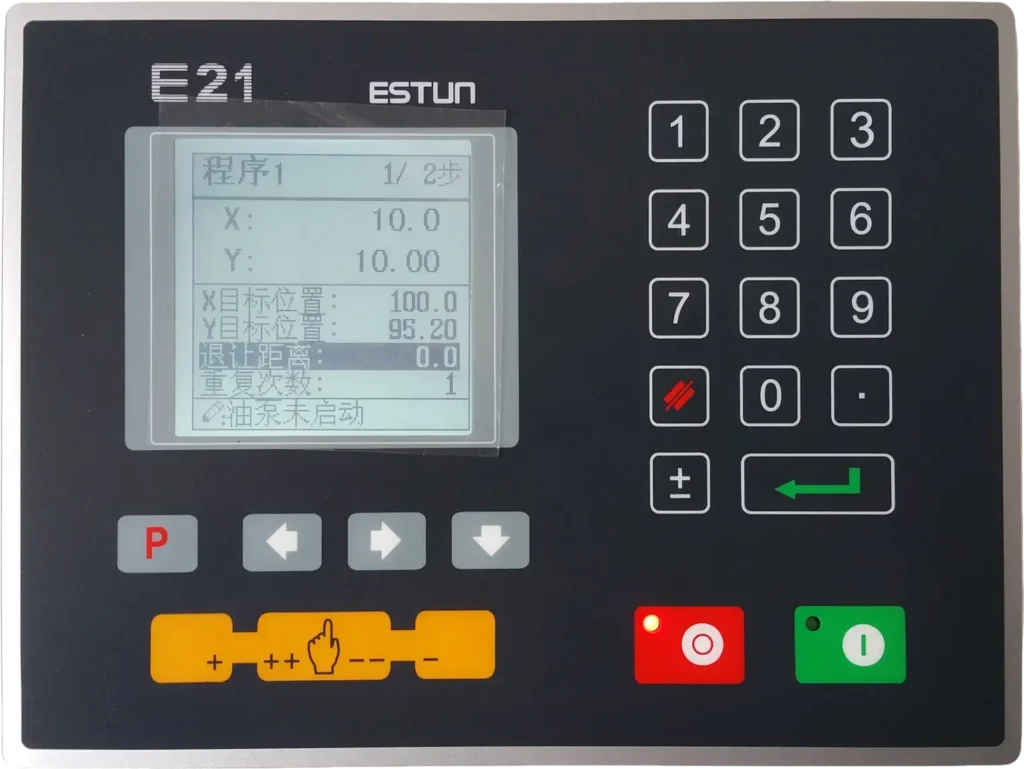

E21 Control System
- High-Definition LCD Display
- Precision Backgauge Control
- Multi-Step Programming
- Integrated Stroke Length Adjustment
- One-Key Parameter Backup & Restore
- Intelligent Retraction Function
- Automatic Shear Counter
- Robust & Simple Operation
Control System

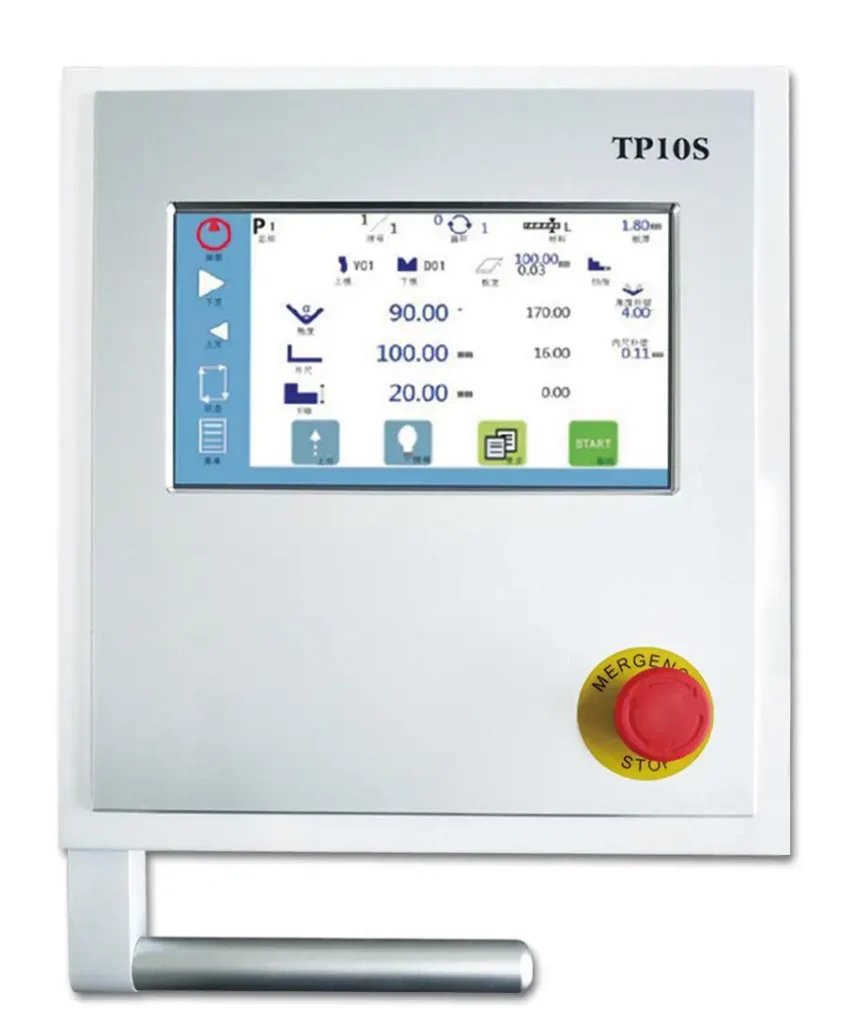

TP10S Touch Control System
- Full-Color Touch Screen Interface
- Intelligent Auto-Calculation
- Multi-Axis Precision Control
- Visual Programming & Library
- Advanced Retraction Logic
- Remote Diagnostics & USB Support
- Real-Time Diagnostics & Alarm Log
- Eco-Friendly Power Management
